OctaRAM PRODUCTS


Introuction

OctaRam은 Double Date Rate(DDR)로 동작하는 CellularRAM(CRAM) 제품입니다.  특징으로는 8-bit Serial Interface로 구성되며, 최대 200 MHz Speed를 지원하는 제품으로써 차량용 반도체 시장 및 Wearable device시장, IoT 시장에 많이 활용될 수 있습니다.
























Features

  • Density: 64Mb, 128Mb
  • Core Architecture: CRAM (Celluar RAM) Memory Core
  • Hidden Self-Refresh Pseudo DRAM
  • Octa Bus (8-bit data bus) - DQ[7:0]
  • Double-Data Rate (DDR) - double date transfer per clock
  • Maximum Clock Frequency: 200MHz

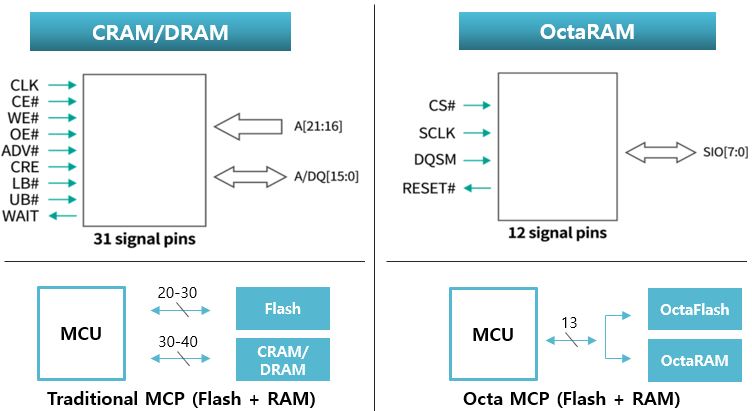

  • Small Interface Signal for Low Cost Package (Total 12 interface signals)
  • Power Supply Voltage: 1.8V / 3.0V
  • Operating Temperature: Automotive -40℃ ~ 105℃ (AEC-Q100 Grade 2)
  • Core Architecture: CRAM (Celluar RAM) Memory Core
    • Density Voltage Max Speed Page Mode DPD Mode Operating Temp Package Type Part Number Status
    64Mb 1.8V 200MHz Non O -40oC ~ +85oC KGD JSC64SSP8AGI M/P
    64Mb 1.8V 200MHz Non O -40oC ~ +105oC KGD JSC64SSP8AGM M/P
    64Mb 3.0V 133MHz Non O -40oC ~ +85oC KGD JSC64SSU8AGI M/P
    64Mb 3.0V 133MHz Non O -40oC ~ +105oC KGD JSC64SSU8AGM M/P
    128Mb 1.8V 200MHz Non O -40oC ~ +85oC KGD JSC28SSP8AGI M/P
    128Mb 1.8V 200MHz Non O -40oC ~ +105oC KGD JSC28SSP8AGM M/P
    128Mb 3.0V 133MHz Non O -40oC ~ +85oC KGD JSC28SSU8AGI M/P
    128Mb 3.0V 133MHz Non O -40oC ~ +105oC KGD JSC28SSU8AGM M/P
    64Mb 1.8V 200MHz Non O -40oC ~ +85oC 49B BGA 4x4mm JSC64SSP8AGDT-50I Contact us
    64Mb 3.0V 133MHz Non O -40oC ~ +85oC 49B BGA 4x4mm JSC64SSU8AGDT-75I Contact us
    128Mb 1.8V 200MHz Non O -40oC ~ +85oC 49B BGA 4x4mm JSC28SSP8AGDT-50I Contact us
    128Mb 3.0V 133MHz Non O -40oC ~ +85oC 49B BGA 4x4mm JSC28SSU8AGDT-75I Contact us
    64Mb 1.8V 200MHz Non O -40oC ~ +105oC 24B BGA 6x8mm JSC64SSP8AGDY-50M M/P
    64Mb 1.8V 200MHz Non O -40oC ~ +85oC 24B BGA 6x8mm JSC64SSP8AGDY-50I M/P
    64Mb 3.0V 133MHz Non O -40oC ~ +85oC 24B BGA 6x8mm JSC64SSU8AGDY-75I M/P
    64Mb 3.0V 133MHz Non O -40oC ~ +105oC 24B BGA 6x8mm JSC64SSU8AGDY-75M M/P
    128Mb 1.8V 200MHz Non O -40oC ~ +85oC 24B BGA 6x8mm JSC28SSP8AGDY-50I M/P
    128Mb 1.8V 200MHz Non O -40oC ~ +105oC 24B BGA 6x8mm JSC28SSP8AGDY-50M M/P
    128Mb 3.0V 133MHz Non O -40oC ~ +85oC 24B BGA 6x8mm JSC28SSU8AGDY-75I M/P
    128Mb 3.0V 133MHz Non O -40oC ~ +105oC 24B BGA 6x8mm JSC28SSU8AGDY-75M M/P
